Semi-Finished Coaxial Cable RG6
1. PHYSICAL CONSTRUCTION
| STANDARD SHIELD | TRI – SHIELD | QUAD – SHIELD | ||
| CONDUCTOR | MATERIAL | BC (Solid Bare Copper)/ CCA (Copper-Clad Aluminum)/ CCS (Copper-Clad Steel)/ CCAM (Copper-Clad Aluminum Magnesium) | BC / CCA / CCS / CCAM | BC / CCA / CCS / CCAM |
DELECTRIC | MATERIAL | FOAMED PE | FOAMED PE | FOAMED PE |
SHIELD | CONSTRUCTION | FOIL + BRAID | FOIL + BRAID + FOIL | (FOIL + BRAID）x2 |
FOIL MATERIAL | AL FOIL / CU FOIL | AL FOIL / CU FOIL | AL FOIL / CU FOIL | |

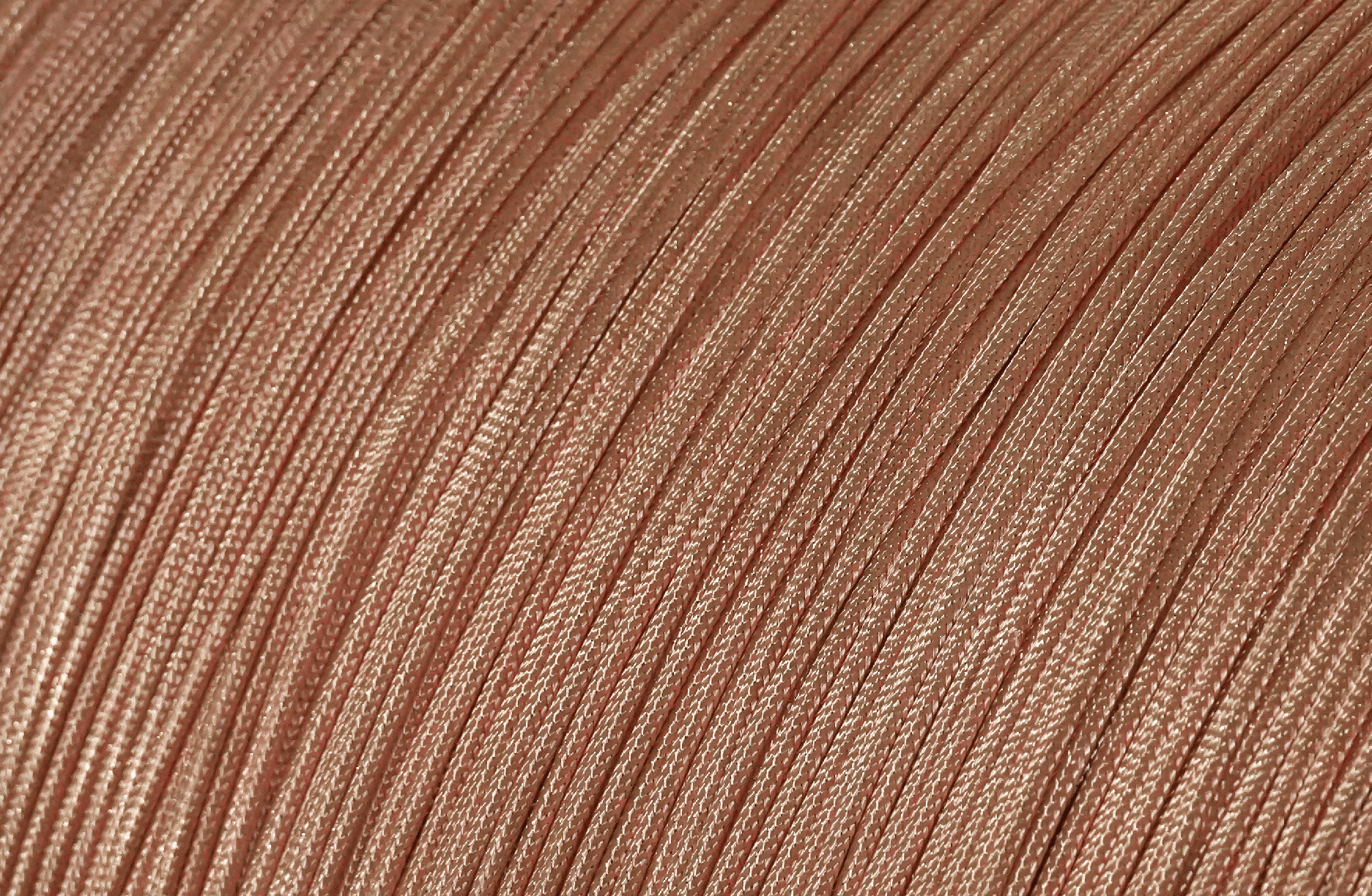

| BRAID MATERIAL | BC / CCA / AL / TC | BC / CCA / AL / TC | BC / CCA / AL / TC | |
BRAID COVERAG | 40% — 95% | 40% — 95% | 60% / 40% | |
2. ELECTRICAL CHARACTERISTICS
| Parameter | Typical Value | Description |
|---|---|---|
| Characteristic Impedance | 75 ± 3 Ω | Standard impedance for RG6 coaxial cable |
| Capacitance | Approx. 50 pF/m | Unit capacitance |
| Nominal Velocity of Propagation | Approx. 85% | The ratio of the speed of an electrical signal propagating in a cable to its speed in a vacuum |
| Attenuation | Approx. 6.5 dB/100m @ 100 MHz | Typical signal loss per 100 meters |
| Frequency Range | DC – 1 GHz | Suitable frequency range for CATV & broadband |
| DC Resistance (Conductor) | Approx. 6.5 Ω/100m | Resistance of conductor per 100 meters |
| Voltage Rating | 300 V | Maximum working voltage |
3. APPLICATION SCENARIOS
Cable TV (CATV) distribution networks
Satellite TV installations
Broadband internet systems
CCTV surveillance wiring
Commercial and residential RF applications
4. PACKAGING
Core Length: Typically 500m or 1000m per reel (custom lengths available)
Reel Type: Wooden or plastic reels
Net Weight: Approx. 15–22 kg per 500m reel, depending on shielding and conductor
Protection: Wrapped with plastic film to prevent moisture and dust ingress
Bulk Packaging: Carton boxes or pallets for large orders
