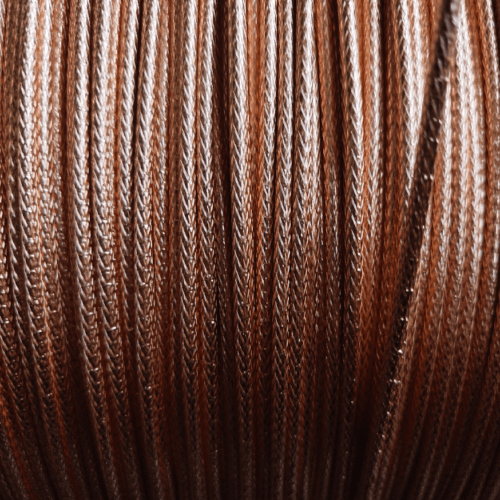

Semi-Finished Coaxial Cable RG8 (50Ω)
1. PHYSICAL CONSTRUCTION(Core structure only, without outer jacket)
| STANDARD SHIELD | TRI – SHIELD | QUAD – SHIELD | ||
| CONDUCTOR | MATERIAL | BC (Solid Bare Copper)/ CCA (Copper-Clad Aluminum)/ CCS (Copper-Clad Steel)/ CCAM (Copper-Clad Aluminum Magnesium) | BC / CCA / CCS / CCAM | BC / CCA / CCS / CCAM |

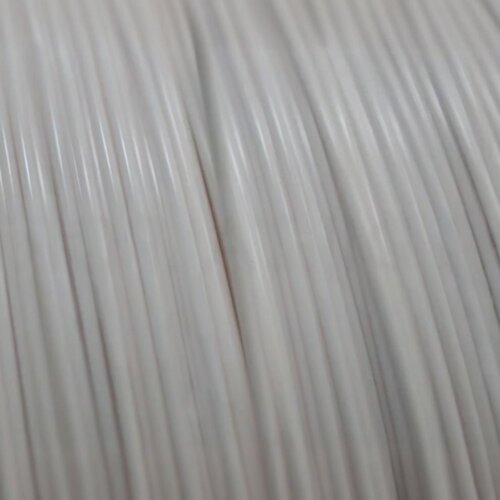

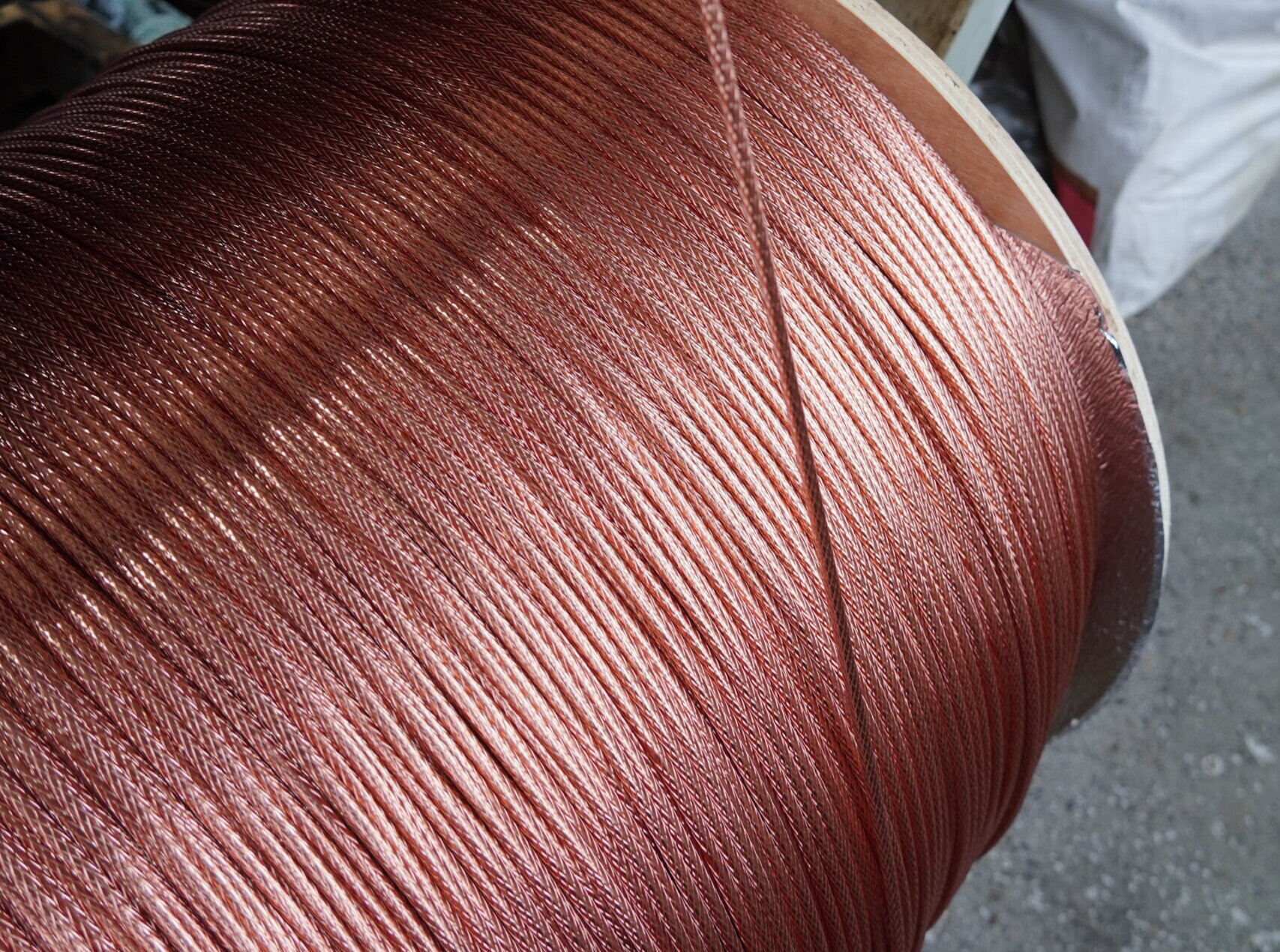

DELECTRIC | MATERIAL | FOAMED PE | FOAMED PE | FOAMED PE |
SHIELD | CONSTRUCTION | FOIL + BRAID | FOIL + BRAID + FOIL | (FOIL + BRAID）x2 |
FOIL MATERIAL | AL FOIL / CU FOIL | AL FOIL / CU FOIL | AL FOIL / CU FOIL | |
| BRAID MATERIAL | BC / CCA / AL / TC | BC / CCA / AL / TC | BC / CCA / AL / TC | |
BRAID COVERAG | 40% — 95% | 40% — 95% | 60% / 40% | |
2. ELECTRICAL CHARACTERISTICS
| Parameter | Typical Value | Note |
|---|---|---|
| Characteristic Impedance | 50 Ω | Standard for RG8; ideal for RF and power use |
| Capacitance | ~26.4 pF/ft (~86.6 pF/m) | Lower capacitance for efficient signal transfer |
| Velocity of Propagation | 66–80% (depending on dielectric) | Foamed PE offers higher velocity |
| Attenuation @100 MHz | ~2.2 dB/100 ft (~7.2 dB/100m) | Low signal loss |
| Maximum Operating Voltage | 1,900 V RMS | Suitable for high-voltage RF environments |
| Frequency Range | DC – 1 GHz or higher | Effective in RF/microwave ranges |
3. APPLICATION SCENARIOS
Two-way radio transmission
Antenna and base station connections
RF/microwave signal transmission
Industrial high-frequency communication systems
Military and aerospace-grade signal systems
Repeater systems in data and voice networks
4. PACKAGING
Length per Reel: 300m / 500m / 1000m (customizable)
Reel Type: Plastic, ABS, or wooden reels
Net Weight: ~25–35 kg per 500m (depends on conductor & shield)
Outer Packaging: Plastic film wrapping; optional carton box or pallet
Labeling: Custom labels or project branding upon request
